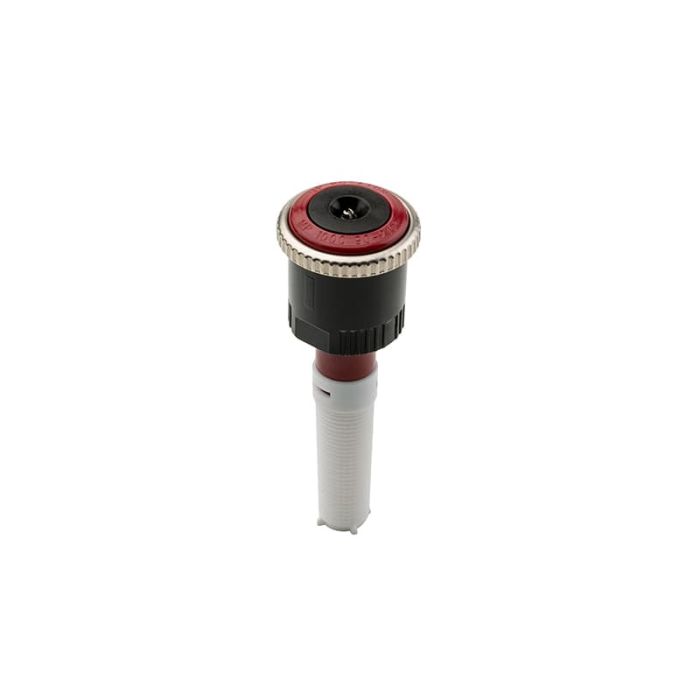

Hunter MP Rotator - MP100090

The revolutionary MP Rotator features a unique, multi-trajectory rotating stream delivery system that achieves water-conserving results.

Rather than simply “spray” water onto landscapes, MP Rotators deliver multiple streams of water at a steady rate. This slower application rate allows water to gently soak into the soil and achieves an even distribution throughout the area being irrigated.

This increased efficiency results in 30% less water use when compared to traditional sprays and significantly reduces wasteful runoff. The MP Rotator can be installed onto any conventional spray head body or shrub adapter, transforming them into high uniformity, low precipitation rate sprinklers with matched precipitation at any arc and any radius.

The MP Rotators are a great choice for new systems, as they provide immense range flexibility (from 2.5 m to 10.7 m radius), decrease material costs, and provide better system efficiency. MPs are also perfect for revitalizing older systems—a retrofit can solve both low pressure and poor coverage problems.

MP100090 Specification

• Radius: 2.5 - 4.5m
• Spray Arc: Adjustable from 90º to 210º
• Flow: 0.64 - 2.84 l/min

Key Benefits

• Lowest precipitation rate in the industry of approximately 10 mm/hr
• Matched precipitation for simplified irrigation design and flexibility
• Double-pop feature protects the nozzle from external debris
• High distribution uniformity for a healthy landscape with maximum water efficiency

Additional Features

• Wind-resistant, multi-stream technology prevents misting
• Adjustable arc only when running for vandal resistance
• Removable filter screen prevents nozzle from clogging
• Colour-coded for easy identification

Advanced Features

Automatic Matched Precipitation

The MP Rotator® has the unique ability to control the amount of water flowing through the nozzle at various arc and radius settings, resulting in matched precipitation regardless of the nozzle setting.

Double Pop

The MP Rotator Nozzle pops up from its protected position only after the riser is fully extended, providing superior defense against dirt and debris.

Disribution Uniformity

The various streams of the MP Rotator allow it to target all areas of the landscape evenly, yielding superior uniformity over traditional spray nozzles. Each stream targets specific areas to achieve higher efficiency and even coverage.

Low Precipitation Rate

Since the vast majority of soils have an infiltration rate of less than 25 mm/hr, irrigating at a low precipitation rate is essential to achieve efficiency.

The standard MP Rotator line applies water at 10 mm/hr, while the MP800 has a precipitation rate of 20 mm/hr. Either choice will avoid runoff, saving water and preventing erosion.
